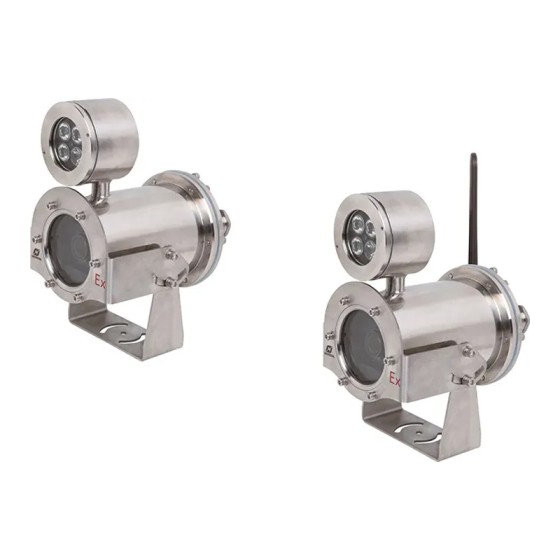

BJK-S/GD Series Security Explosion Proof Camera
BJK-S/GD Series Security Explosion-Proof Camera (ATEX Approved)
Product Description
KING LINK ELECTRICALS L.L.C offers the BJK-S/GD Series Security Explosion-Proof Camera, an ATEX-approved surveillance solution designed for hazardous industrial environments. Built with a durable 304, 316, or 316L stainless steel housing, this explosion-proof camera delivers high-definition video monitoring while ensuring safe operation in explosive gas and dust atmospheres. Supporting H.265, H.264, H.264B, and MJPEG video compression along with 4G, 5G, and WiFi connectivity, it provides real-time remote monitoring, video transmission, and recording. With IP66/IP68 protection and an operating temperature range of -60°C to +63°C, the BJK-S/GD Series offers reliable performance in the most demanding industrial conditions.
Applications
The BJK-S/GD Series Security Explosion-Proof Camera is suitable for:
- Hazardous Zone 2 locations.
- Oil & Gas facilities.
- Petrochemical and chemical processing plants.
- Refineries and offshore platforms.
- Construction sites and industrial facilities.
- Marine and port installations.
- Power generation plants.
- Outdoor industrial security and surveillance.
- Critical infrastructure and hazardous area monitoring.
Features
- ATEX-approved explosion-proof security camera.
- High-definition video with H.265, H.264, H.264B, and MJPEG compression.
- Supports 4G, 5G, and WiFi wireless communication for remote monitoring.
- Suitable for fixed-point surveillance with optional semi-fixed PTZ adjustment.
- Optional intelligent temperature control system for reliable operation in extreme environments.
- Available in 304, 316, or 316L stainless steel for superior corrosion resistance.
- IP66/IP68-rated enclosure provides excellent protection against dust and water ingress.
- Suitable for fixed bracket, base, or pole mounting.
- Designed for continuous operation in harsh industrial and hazardous environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BJK-S/GD Series |
| Product Type | ATEX Explosion-Proof Security Camera |
| Video Compression | H.265, H.264, H.264B, MJPEG |
| Wireless Connectivity | 4G, 5G, WiFi |
| Housing Material | 304 Stainless Steel, 316 Stainless Steel, or 316L Stainless Steel |
| Degree of Protection | IP66 / IP68 |
| Operating Temperature | -60°C to +63°C |
| Cable Gland | 2 × M20 × 1.5 or NPT 1/2″ Inlet |
| Suitable Cable Diameter | Φ6.5 mm – Φ14.5 mm |
| Installation Method | Fixed Bracket, Base Mount, or Pole Mount |
Why Choose KING LINK ELECTRICALS L.L.C?
KING LINK ELECTRICALS L.L.C is a trusted supplier of ATEX-approved explosion-proof security cameras and hazardous area surveillance systems in the UAE. We provide reliable, high-performance monitoring solutions engineered for maximum safety, durability, and continuous operation in hazardous industrial environments.
