6kVA Three Phase Automatic Voltage Stabilizer – Technical Specifications
Overview

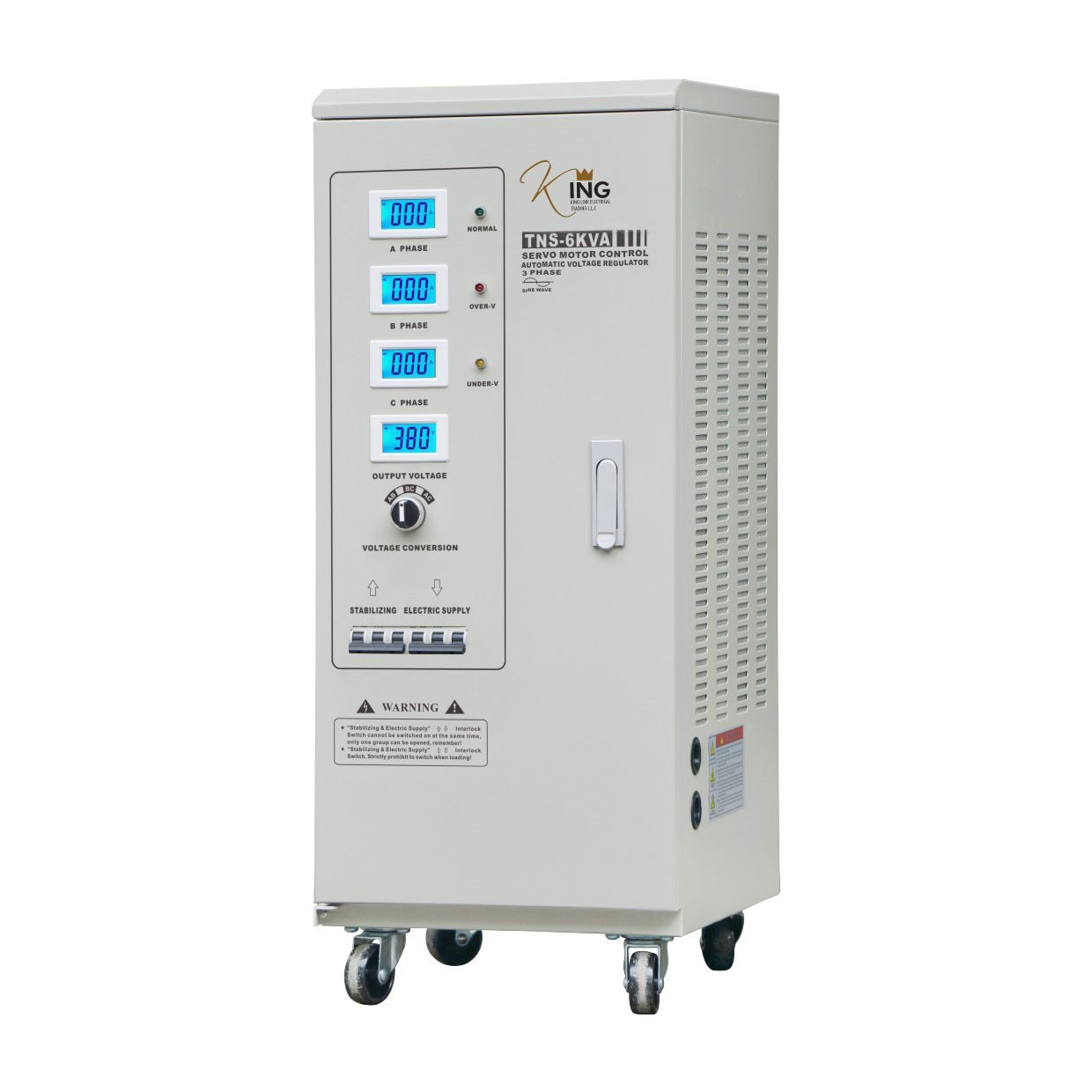

The 6kVA Three Phase Automatic Voltage Stabilizer by KING LINK ELECTRICALS is a compact and efficient solution designed to protect small industrial and commercial electrical systems. It delivers stable 400V output with high precision voltage regulation, ensuring safe operation of sensitive equipment under fluctuating voltage conditions. With a wide input range of 280V to 450V and fast response time, it effectively controls power variations and prevents damage. Built for reliability, it offers high efficiency, overload protection, and long service life, making it ideal for workshops, offices, and light industrial applications in demanding environments.
Electrical Specifications
- Rated Capacity: 6kVA (3 Phase)
- Input Voltage Range: 280V – 450V AC
- Output Voltage: 400V AC
- Output Accuracy: 400V ± 2.5%
- Frequency: 50Hz / 60Hz
- Efficiency: > 90%
- Response Time: ≤ 1.5 seconds (against 10% input voltage deviation)
Physical & Environmental Specifications
- Ambient Temperature: –10°C to +40°C
- Relative Humidity: < 95% (non-condensing)
- Insulation Resistance: > 2MΩ
- Withstand Voltage: 1500V / 1 minute
- Waveform Distortion: No additional waveform distortion
Protection Features
- Over-voltage protection
- Under-voltage protection
- Overload protection (double rated current for 1 minute)
- Short circuit protection
- Time delay function for safe operation
Mechanical Details
- Phase Type: Three Phase
- Package Dimensions (W × D × H): 40 × 43 × 74 cm
- Packing: 1 Unit per Package
Applications
Ideal for small industrial setups, workshops, offices, HVAC systems, light machinery, and sensitive three-phase equipment requiring stable and continuous 400V power supply.
Contact us
For reliable voltage protection and stable power supply, contact KING LINK ELECTRICALS today. Get the best 6kVA Three Phase Voltage Stabilizer in UAE with professional support, competitive pricing, and trusted industrial-grade quality designed to protect your valuable equipment.
